Daiki Axis Bangladesh Successfully Implements Johkasou STP at Barishal Cantonment (Div. Headquarter)
PROJECT INFORMATION
- Project Name: Barishal Cantonment (Div. Headquarter)
- Category: Johkasou STP
- Capacity: 40 m3/day
- Location: Lebukhali, Barishal
- Client: MES
- Work Status: 2022
Details of This Project

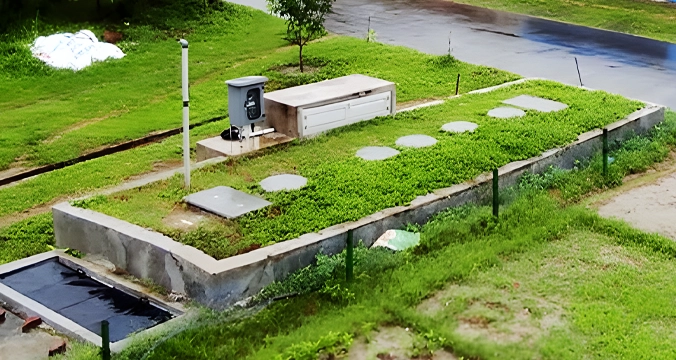

Daiki Axis Bangladesh is the main Johkasou STP manufacturer in Bangladesh. We successfully installed a Johkasou Sewage Treatment Plant (STP) at the Barishal Cantonment (Div. Headquarters). There is an STP (capacity of 40 m3/day) in this project. The modules are made of FRP. There are 5 blowers and a pump for pumping the raw water from the raw water tank. There is a send vessel for clearing the treated water. The final treated water their used in gardening.
This project reflects our commitment to providing sustainable and eco-friendly wastewater solutions across Bangladesh.
Features of this STP Project
- Capacity: 40 m³/day.
- Modules made of FRP (Fiber Reinforced Plastic).
- 5 blowers for aeration.
- Pump for transferring raw water from the raw water tank.
- Sand vessel for clarifying treated water.
- Final treated water used for gardening.
Process Flow of the STP
The Johkasou STP at the Barishal Cantonment (Div. Headquarters) follows a systematic treatment process:
- Separation Box: Separate solids in wastewater by gravity and prevent the agitation of the excess sludge in Sedimentation & Separation Chamber by influent.
- Separation & Sedimentation Chamber: Separate solid debris or impurities from water in influent and circulated water and store these sediments in the chamber. Accumulated sludge should be desludged from the tank periodically at least once in 6–12 months.
- Anaerobic Chamber: It is filled with filter materials, which separate solids and keep anaerobic microorganisms to decompose organic matter.
- Moving Bed Chamber: It is filled with mesh cylindrical media, which retain aerobic microorganisms to decompose and remove organic matter from wastewater.
- Sedimentation Chamber: In order to obtain clear treated water, separate the excess sludge (suspended solids, SS) by gravity. The settled sludge is constantly returned to the sedimentation & separation chamber by the airlift pump.
- Disinfection Chamber: Disinfect the treated water to discharge to the river or other water bodies.
The entire system operates seamlessly, ensuring the best sewarage treatment with minimal environmental impact.

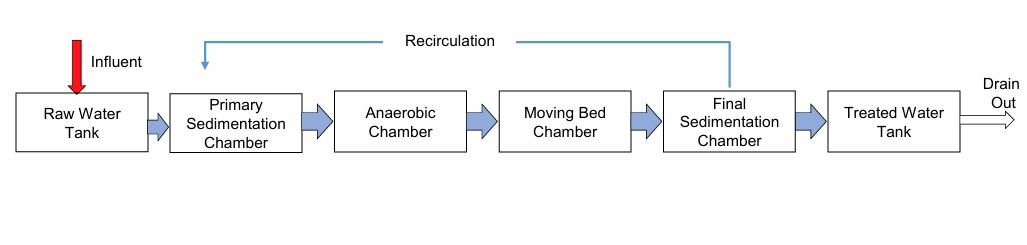

Process Flow of This Project
Why Choose Daiki Axis Bangladesh for STP Solutions?
As a subsidiary of Daiki Japan, we bring the expertise and innovation of Japanese wastewater treatment technology to Bangladesh. We are the best onsite STP supplier in Bangladesh. Our commitment to quality ensures that each Johkasou system meets the specific needs of the Bangladeshi environment and supports a sustainable future.
- Expertise in implementing advanced Japanese sewage treatment technology.
- Compact, energy-efficient designs tailored to client needs.
- Proven track record of successful projects across Bangladesh.
The Johkasou STP at the Barishal Cantonment (Div. Headquarters) is a perfect example of sustainable wastewater management.
Why STP need for everywhere in Bangladesh?
Sewage Treatment Plants (STP) are very important for Bangladesh to keep the environment clean and safe. With more people and industries growing every day, untreated sewage is causing serious problems. Dirty water from homes and factories often goes into rivers and ponds, making them unsafe for drinking, farming, or fishing. This pollution also harms fish and plants.
STP clean this dirty water, removing harmful things before it goes back into nature. Without proper treatment, sewage can spread diseases like cholera and diarrhea, putting many lives at risk. In crowded cities, STPs help manage waste, prevent bad smells, and stop water from flooding the streets. They also protect our natural surroundings and make sure water stays usable for future generations. As floods and rising sea levels become bigger challenges, STPs are needed to keep communities safe and healthy. Investing in STPs is an investment in a better, cleaner Bangladesh.
Bangladesh’s Urgent Need for Wastewater Treatment Solutions
Bangladesh, with its many rivers, relies on these waterways for farming, fishing, and transportation. But rapid growth in cities and industries has caused serious pollution. Rivers like the Buriganga are so polluted they can no longer support life, and others like the Shitalakhya, Turag, and Balu are also in danger.
Right now, only about 405 rivers are still active, and many of them are at risk due to pollution and illegal activities. This is a serious problem that needs to be solved quickly.
To protect our rivers, Bangladesh needs to adopt better wastewater treatment methods. One effective solution is the Johkasou system, which helps clean wastewater before it reaches the rivers. Here’s how it can help:
- Cut down on pollution: By cleaning wastewater before it flows into the rivers, we can reduce pollution.
- Help nature recover: Cleaner rivers will bring back fish and other wildlife, helping the environment heal.
- Follow the rules: The Johkasou system meets the standards set by the Department of Environment (DoE) and Environmental Conservation Rules (ECR), making sure wastewater is safely treated.
It’s crucial for Bangladesh to act now. Treating wastewater will not only clean up our rivers but also protect public health and create a safer environment for everyone.
A Sustainable Future for Bangladesh
Investing in waste water treatment isn’t just about cleaning up rivers—it’s about building a healthier, more sustainable future for Bangladesh. Taking action now can help preserve the country’s rivers, improve water quality, and protect the livelihoods of millions of people who rely on these waterways.
By choosing Daiki Axis Bangladesh, you get modern, reliable, and eco-friendly solutions tailored to your needs. Contact us today to learn more about our projects and services.
